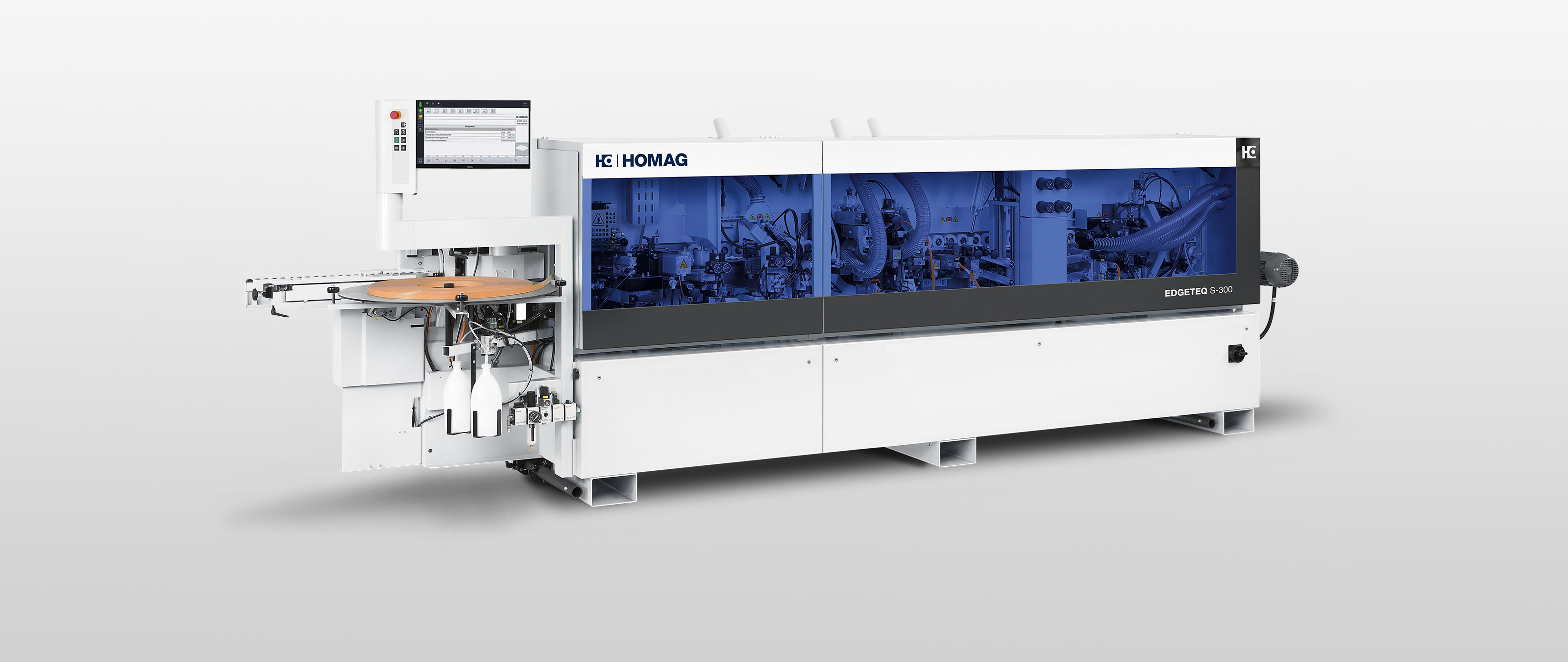

Edge Banding Machines EDGETEQ S-300
Edge Banding Machines EDGETEQ S-300
The high-performance mid-range solution
Is your entry-level machine stretched to its limits? Then it is time to take the next step with these machines. They feature multi-level technology for automated processing of different profiles, as well as a grooving unit or the latest zero joint technology offered by the airTec unit. The high level of automation of the units ensures short setup times and optimum ease of use.
Highlights
Universal melting unit: The change of glue type can be performed quickly and easily with two special interchangeable tanks for PUR cartridges or EVA granulate.
Intuitive touch operation: Control machine functions directly via woodCommander using the multi-touch, widescreen monitor. The ergonomic design as well as numerous help and assistant functions take ease of operation to the next level.
End-to-end multi-level technology in post-processing.
Images
-
![]()
On-demand availability and perfect glue quality with Quickmelt -
![]()
Glue application with glue roller and use of all types of glue, including PUR glue, for high flexibility. -
![]()
Precise end-trimming unit, equipped with THK guides.
Chamfer/straight adjustment by easily tilting -
![]()
The multistage trimming and scraping units always offer the ideal radius and the best results -
![]()
Trimming of the overhang on top and bottom side as well as contour trimming. Equipped with autom. adjustment to switch between thick and thin edges -
![]()
The quality of your products is increased by the use of perfectly coordinated finishing units
Features
-
woodCommander: Software for quick selection of the processing programs and the edge material.
-
New magazine option: Height adjustment for different edge overhangs. The servo edge feed increases precision and durability.
-
Flexible glue application system for easily changing the color and type of glue (EVA, PUR).
-
Multifunctional profile trimming unit for corner rounding and flush trimming.
-
Short setup times thanks to pneumatic adjustment of the units.
-
Multi-level technology for highly flexible use with changing materials (Included as standard in the Edition model).
-
Zero joints with airTec for optimum joint-free finish
(As standard available at the airTec-model)
Technical Data
| Model 1430 FC - 1450 FC | Model 1440 AT | Model 1440 E | Model 1430 - 1440 HF | |
|---|---|---|---|---|
| Machine length [mm] | 4.773 - 6.062 | 5.573 | 5.573 | 4.773 - 5.273 |
Workpiece width [mm] in case of thickness 8 - 22 mm | 70 | 70 | 70 | 70 |
| Workpiece thickness [mm] | 8 - 60 | 8 - 60 | 8 - 60 | 8 - 60 |
| Edge thickness [mm] | 0,3 - 8 | 0,3 - 8 | 0,3 - 8 | 0,3 - 8 |
| Feed speed [m/min] | 8 - 14 | 8 - 14 | 8 - 14 | 8 - 14 |
(Previous product name: Edge banding machines Ambition 1400: 14 m/min feed speed)
Software
-
![]()
Edgeband Management Set: The edgeband assistant
The edge material and all related information at a glance
Clear management and unique identification of edges in the rack (incl. residual lengths)
Reduced setup times thanks to faster edge changes
-
![]()
materialManager
All material data and stocks managed clearly in just one digital application
Central material management in the company
Integrated use of material data
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy
Edge Banding Machine: EDGETEQ S-300
Is your entry-level machine stretched to its limits? Then it is time to take the next step with these machines. They feature multi-level technology for automated processing of different profiles, as well as a grooving unit or the latest zero joint technology offered by the airTec unit. The high level of automation of the units ensures short setup times and optimum ease of use.
